St Luke's Wesleyan Church

Click to enlarge

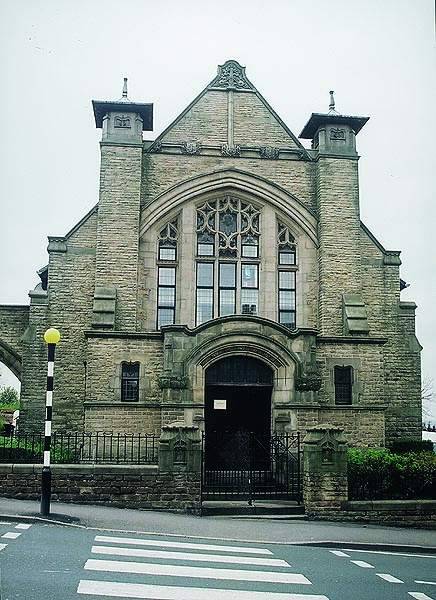

Sheffield, St Luke's Church, Northfield Road

Although conventional in plan, the detailing of St Luke's (1899-1900) makes it stand apart from the great mass of Methodist chapels. Samuel Meggitt Johnson, Chairman of the liquorice allsort manufacturers, George Bassett & Co, covered the £4,000 cost of the chapel and adjacent Sunday school and this generous funding gave Hale greater scope in preparing his designs. He took the PerpendicularGlossary Term style favoured by chapel architects at the beginning of the twentieth century and transformed it into something quite individual. The buttresses that flank the west window rise to form towers each with a pyramidal cap while the archGlossary Term over the window springs straight from them. The way in which the railings reflect motifs used in the porch window lintels and in the carvings on the top of the buttresses is typical of Hale's care in detailing. The church closed in 1985 and has been converted to flats under the name Hale Court.

Click to enlarge
Sheffield, St Luke's Church, Northfield Road

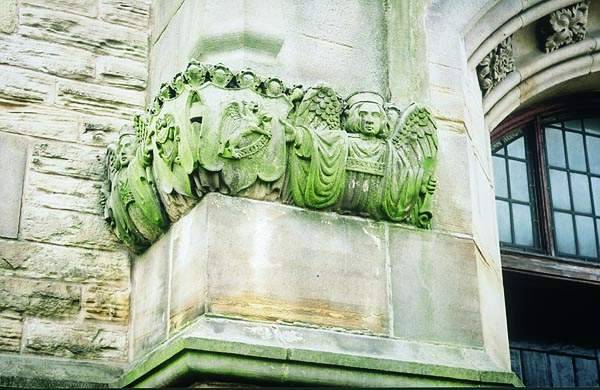

Frank Tory, the most prominent Sheffield architectural stone carver, carried out the carving on the façade which includes a Tree of Life on the gableGlossary Term and exquisite imposts on each side of the door depicting the four evangelists as angels.

Glossary

Arch

Types include: Basket arch or Anse de Panier (French, lit. basket handle): three-centred and depressed, or with a flat centre. Chancel: dividing chancel from nave or crossing in a church. Crossing: spanning piers at a crossing in a church. Depressed or three-centred: with a rounded top, but curving inward more at the sides. Four-centred: with four arcs, the lower two curving inward more than the upper, with a blunt central point; typical of late medieval English architecture. Jack arch: shallow segmental vault springing from beams, used for fireproof floors, bridge decks, etc. Ogee (adjective ogival): a pointed arch with a double reverse curve, especially popular in the 14th century; a nodding ogee curves forward from the wall face at the top. Parabolic: shaped like a chain suspended from two level points, but inverted. Relieving or discharging: incorporated in a wall to relieve superimposed weight. Shouldered: with arcs in each corner and a flat centre or lintel. Skew: spanning responds not diametrically opposed. Stilted: with a vertical section above the impost i.e. the horizontal moulding at the springing. Strainer: inserted in an opening to resist inward pressure. Three-centred: see Depressed, above. Transverse: spanning a main axis (e.g. of a vaulted space). Triumphal arch: influential type of Imperial Roman monument, free-standing, with a square attic or top section and broad sections to either side of the main opening, often with lesser openings or columns. Tudor: with arcs in each corner joining straight lines to the central point. Two-centred: the simplest kind of pointed arch.

Gable

Peaked external wall at the end of a double-pitch roof. Types include: Dutch gable, with curved sides crowned by a pediment (also called a Flemish gable); kneelered gable, with sides rising from projecting stones (kneelers); pedimental gable, with classical mouldings along the top; shaped gable, with curved sides; tumbled gable, with courses or brick or stonework laid at right-angles to the slope. Also (Scots) a whole end wall, of whatever shape.

Perpendicular

English version of late Gothic, developed from the 1320s, which continued into the early 16th century; sometimes abbreviated to Perp. Characterised by large windows with a grid pattern of mullions and transoms, with the mullions continuing to the head to the arch, which is often of flattened or four-centred form. This motif of panel tracery is used also for wall decoration, and on the fan vaults that were used for the most prestigious buildings.
